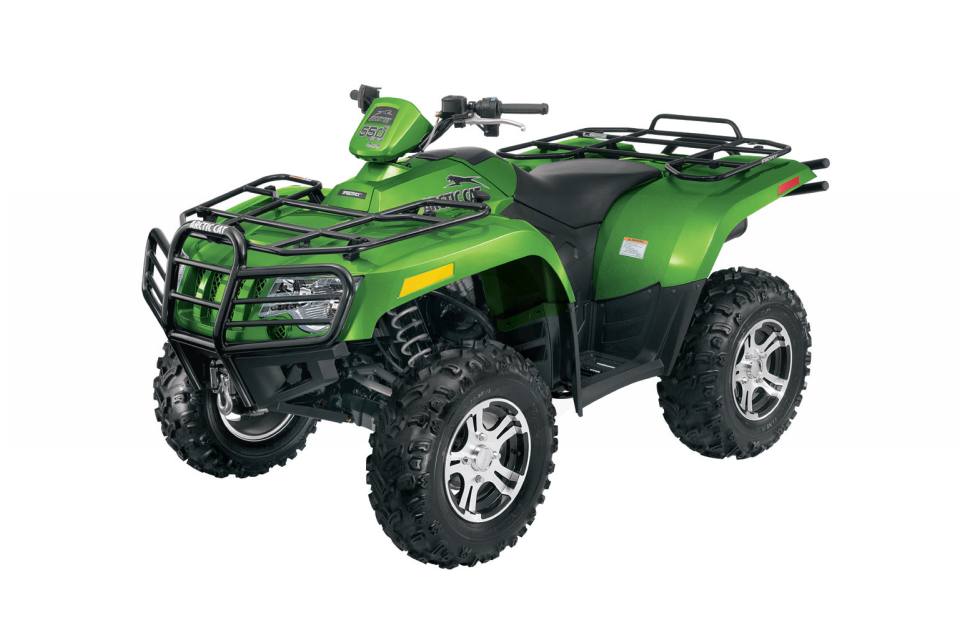

2010 Arctic Cat 550 H1 EFI LE

3 YR. WARR. & FINANCING AVAILABLE, PDI/FRT EXTRA

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

We don't skimp on the extras. And the 550 H1 EFI LE is loaded with them. It starts with a 4-stroke, 545cc engine as the center of this workhorse. An efficient, liquid-cooled marvel. We also threw in an electric switch at your fingertips to easily shift between 2-wheel or 4-wheel drive. And a front differential lock that enables you to adjust your ride depending on the trail you choose. Topping it off are front and rear heavy-duty bumpers and a tough-as-nails winch. But apart from the hard-working necessities, we've thrown in some fun stuff, too. The 550 has a sleek automotive-styled paint job and 12" aluminum rims. An ATV that's got extras bigger than the great outdoors.

  • Ride-In Suspension - Fully independent, race-inspired suspension features a lower suspension profile and a lower seat design, resulting in a lower center of gravity yet maintaining 11" of ground clearance. That means more confidence hammering through tight corners on the trail, as well as clearing big nasty obstacles off the trail.
  • 550 H1 EFI Engine - A new 545cc, liquid-cooled EFI features a single overhead cam and a single cylinder. The "H" stands for its hemispherical combustion chamger, delivering more efficient combustion resulting in better performance. Electronic fuel injection ensures easy starts and consistent performance in various climates or altitudes. This 4-stroke is efficient, powerful and ready to go.
  • Duramatic™ Automatic Transmission - Durable, efficient automatic CVT is easy to operate, and transfers maximum horsepower and torque to the driveshaft. It also features a Hi/Low shift range and a long-life constant tension belt.
  • Deluxe Digital Analog Gauge - Within a glance, you'll be able to catch a glimpse of up to 14 critical information indicators. Keep a close check on such indicators as your speedometer, clock/hour meter, fuel level, mode button, odometer/tripmeter, gear position, differential lock, high beam, battery condition, temperature and oil pressure.
  • Electric 2WD/4WD and Front Differential Lock - When the going gets tough, shift from 2-wheel to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
  • 12" Machined Aluminum Rims - Newly styled heavy-duty polished aluminum rims with painted black inlays feature an optimized scrub radius minimizing rider steering effort.
  • Arctic Metallic Green Automotive-Style Paint - Cool, mean Metallic Green finish brings mean Team Arctic® attitude. The real beuty of this paint job is that it's designed to be tough and durable. Get your MudPro as filthy as you want, and it'll come clean and maintain its shine.
Specifications
  • Displacement (cc): 545
  • Engine Type: SOHC, 4-Stroke, 4-Valve
  • Bore x Stroke (mm): 92 x 82
  • Cooling System: Liquid w/Fan
  • Transmission: Automatic CVT with EBS, HilLo Range & Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Overall Width (in./cm): 47.5/120.6
  • Overall Height (in./cm): 48/121.9
  • Overall Length (in/cm): 84.8/215.4
  • Wheelbase (in./cm): 50/127
  • Suspension Travel- Front (in./cm): 10/25.4
  • Suspension Travel- Rear (in/cm): 10/25.4
  • Ground Clearance (in./cm): 11/27.9
  • Suspension Type - Front: Double A-Arm
  • Suspension Type - Rear: Double A-Arm
  • Front Brakes: Hydraulic Disc
  • Rear Service: Brake Hydraulic Disc
  • Tires - Front: 25x8-12 (5)
  • Tires - Rear: 25x10-12 (5)
  • Max Fuel Capacity (gal./liters): 5.7/21.6
  • Rack Capacity - Front (lbs./kg): 100/45.4
  • Rack/Box/Flatbed Capacity - Rear (lbs./kg): 200/90.8
  • Towing Capacity (lbs./kg): 1050/476.3
  • Alternator Capacity (amps): 25
  • Speedometer: Digital
  • Odometer: Digital
  • Dry Weight (lbs./kg): 692/313.9
  • Minimum Operator Age: 16
  • Available Colors: Arctic Metallic Green

Specifications

Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 545 cc
Bore x Stroke 92 x 82 mm
Engine Cooling Liquid w/Fan
Alternator 25 amp
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12 (5)
Dimensions/Capacities
Dry Weight 692 lbs. (313.9 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal. (21.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 84.8 x 47.5 x 48 in. (215.4 x 120.6 x 121.9 cm)
Wheelbase 50 in. (127 mm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, HilLo Range & Reverse
General
Speedometer Digital
Odometer Digital
Colors Arctic Metallic Green

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model 550 H1 EFI LE
Style Utility
MSRP* $10,099.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12 (5)
Frame
Dimensions/Capacities
Dry Weight 692 lbs. (313.9 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal. (21.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 84.8 x 47.5 x 48 in. (215.4 x 120.6 x 121.9 cm)
Wheelbase 50 in. (127 mm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, HilLo Range & Reverse
Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 545 cc
Bore x Stroke 92 x 82 mm
Cylinders
Engine Cooling Liquid w/Fan
Fuel System
Starting System
Alternator 25 amp
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Arctic Metallic Green
Warranty
