New Vehicles » Arctic Cat » TRV 1000 H2 EFI Cruiser
Model Quick Search

$15,099.00
$11,688.00
$3,411.00

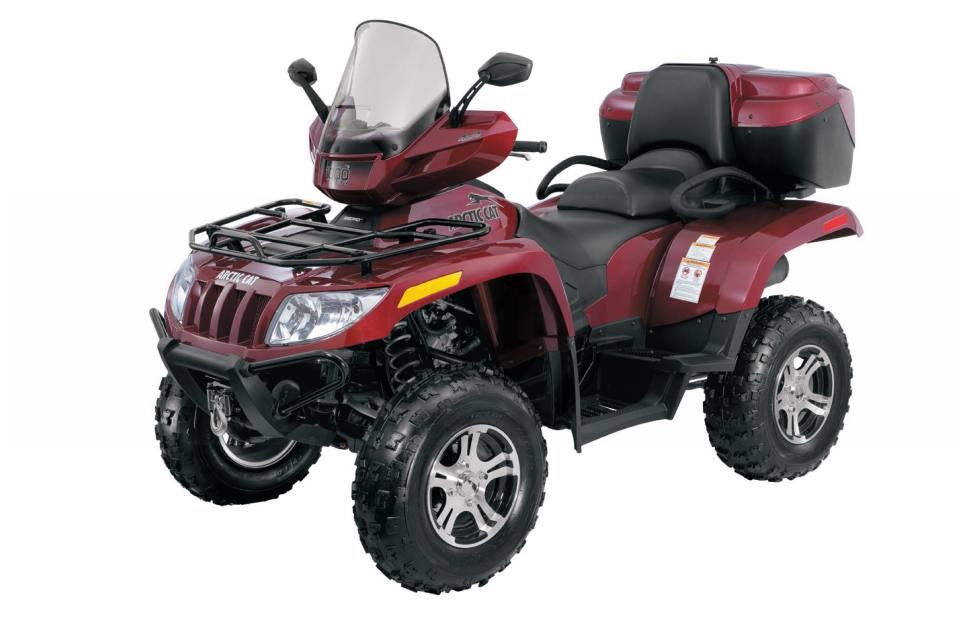

2010 Arctic Cat TRV 1000 H2 EFI Cruiser

3 YR. WARR. & FINANCING AVAILABLE, PDI/FRT EXTRA

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

If there's a royal court of 2-ps, the TRV® 1000 H2 EFI Cruiser is the king. The sturdy Ride-in suspension is race inspired and custom made for taking the trail in tandem. The 12" machined aluminum rims minimize steering effort, while its awesome paint job makes you look like touring royalty. For optimum performance, there's the powerfully smooth V-Twin 1000 H2 EFI engine with industry-leading displacement. We supply you the touring comfort you need with heated handlebars and heated passenger handgrips, plus a plush passenger seat. And features like 2-piece fairing and windshield and a lockable travel case for storage makes this an ATV that will inspire passengers to line up to get a ride.

  • 1000 H2 EFI Engine - This fuel-injected 951cc V-Twin is the largest displacement in the industry. Single overhead cam, 90 degree V-Twin cylinders and hemispherical heads deliver mind blowing power, acceleration and an adrenaline rush like no other. The smooth, deep growl from this bad boy is a warning for others to back of.
  • Deluxe Digital Analog Gauge - Within a glance, you'll be able to catch a glimpse of up to 14 critical information indicators. Keep a close check on such indicators as your speedometer, clock/hour meter, fuel level, mode button, odometer/tripmeter, gear position, differential lock, high beam, battery condition, temperature and oil pressure.
  • Electric 2WD/4WD and Front Differential Lock - When the going gets tough, shift from 2-wheel to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
  • 12" Machined Aluminum Rims - Newly styled heavy-duty polished aluminum rims with painted black inlays feature an optimized scrub radius minimizing rider steering effort.
  • Automotive-Style Paint - Go with our Desert Red or our Arctic Metallic Green paint jobs for a durable, automotive-style paint that cleans easy and maintans an enduring shine.
  • Cruiser Comfort Features - Protective 2-piece fairing with windshield and cup holder keeps driver and passenger warmer. Plus, anti-swirl vent design keeps dust and debris away from driver's face. Heated handlebars and passenger handgrips for added comfort on cool evenings. A plush passenger seat. And a cool, lockable touring case in back, perfect for things like a cooler and a couple of helmets. This machine is designed for a day, or several days of travel.
  • Hand Warmers - Wether it's a crisp dawn or a chilly day, our hand warmers will keep you riding in almost any weather. A heated handlebar provides a comfort right where drivers need it most, while heated passenger handgrips ensure your guest is never left out in the cold.
Specifications
  • Displacement: 951 cc
  • Engine Type: V-Twin, SOHC, 4-stroke, 4-valve
  • Bore & Stroke: 92x71.6 mm
  • Cooling System: Liquid with fan
  • Fuel Capaciy: 5.3 gal / 20.1 L
  • Alternator Capacity: 25.0 amps
  • Speedometer: Analog
  • Odometer: Digital
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in / 25.4 cm
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in / 25.4 cm
  • Front Tires (Pressure): 25 x 8-12 (5)
  • Rear Tires (Pressure): 25 x 10-12 (5)
  • Overall Length: 98.6 in / 250.4 cm
  • Overall Width: 47.5 in / 120.6 cm
  • Overall Height: 50.3 in / 127.8 cm
  • Wheelbase: 58 in / 147.3 cm
  • Ground Clearance: 11 in / 27.9 cm
  • Dry Weight: 785 lbs / 356.1 kg
  • Front Rack Capacity: 100 lbs / 45.4 kg
  • Rear Rack Capacity: 50 lbs / 22.7 kg
  • Towing Capacity: 1,050 lbs / 476.3 kg
  • Special Features: Aluminum Wheels, 2-in-1 Reak Rack
  • Color Options: Desert Red or Arctic Metallic Green

Specifications

Engine
Engine Type V-Twin, SOHC, 4-stroke, 4-valve
Displacement 951 cc
Bore x Stroke 92x71.6 mm
Engine Cooling Liquid with fan
Alternator 25.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12
Rear Travel 10 in. (25.4 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12
Dimensions/Capacities
Dry Weight 785 lbs. (356.1 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.3 gal (20.1 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 98.6 x 47.5 x 50.3 in. (250.4 x 120.6 x 127.8 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Analog
Odometer Digital
Colors Desert Red or Arctic Metallic Green

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model TRV 1000 H2 EFI Cruiser
Style Multi-Rider
MSRP* $15,099.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12
Frame
Dimensions/Capacities
Dry Weight 785 lbs. (356.1 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.3 gal (20.1 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 98.6 x 47.5 x 50.3 in. (250.4 x 120.6 x 127.8 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type V-Twin, SOHC, 4-stroke, 4-valve
Displacement 951 cc
Bore x Stroke 92x71.6 mm
Cylinders
Engine Cooling Liquid with fan
Fuel System
Starting System
Alternator 25.0 amps
General
Speedometer Analog
Tachometer
Odometer Digital
Lighting
Colors Desert Red or Arctic Metallic Green
Warranty

Current Promotions

There are currently no promotions available for this product.
