New Vehicles » Arctic Cat » TRV 700 H1 EFI Cruiser
Model Quick Search

$12,199.00
$9,688.00
$2,511.00

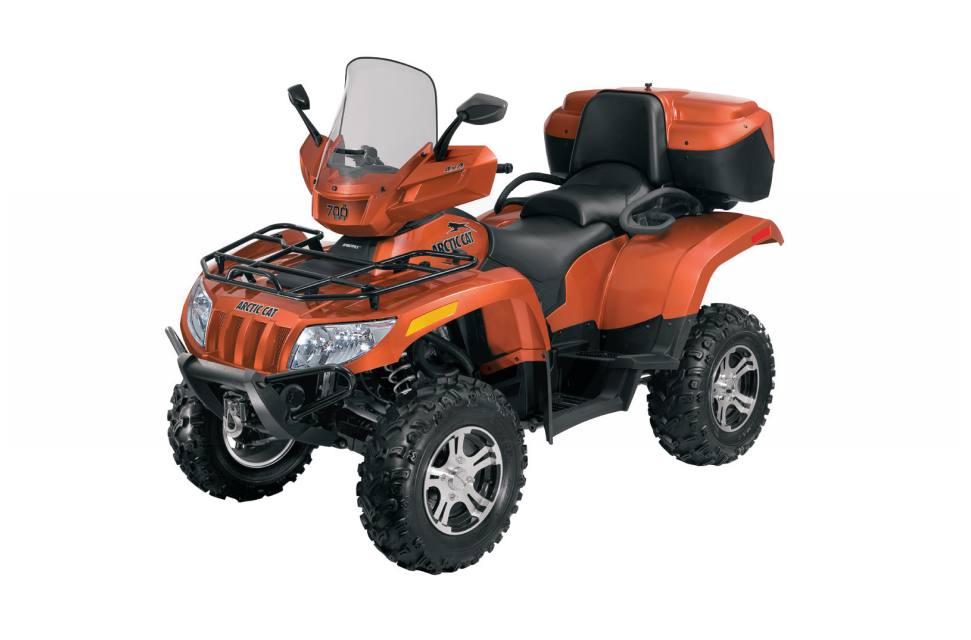

2010 Arctic Cat TRV 700 H1 EFI Cruiser

3 YR. WARR. & FINANCING AVAILABLE, PDI/FRT EXTRA

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

With this ATV, you can double-up the excitement of the outdoors. The smooth handling of the TRV® 700 H1 EFI Cruiser tames the trail as you tour the outdoors with a friend. That's the ultra-efficient Ride-In suspension with 11" of ground clearance giving its all. A race-bred 695cc, liquid-cooled marvel, this ATV conquers any trail and helps you and your riding partner get the most out of your ride. But we've though about style, comfort and convenience too. A dazzling paint job, a protective, 2-piece fairing and windshield manages the wind, while heated handgrips and handlebars keep the cold at bay. Along with the handy storage of a lockable travel case, this machine is ready for a ride that you won't ever want to end.

  • 700 H1 EFI Engine - It's go-time with a race-bred 695cc, liquid-cooled EFI featuring a single overhead cam and a single cylinder. The "H" stands for its hemispherical combustion chamber, delivering more efficient combustion resulting in better performance. Electronic fuel injection ensures easy starts and consistent performance in various climates or altitudes. Push the throttle with this one, it answers big-time.
  • Deluxe Digital Analog Gauge - Digital speedometer readings with integrated warning system includes a clock, dual tripmeter, hour meter, fuel gauge and coolant temperature.
  • Electric 2WD/4WD and Front Differential Lock - When the going gets tough, shift from 2-wheel to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
  • Hand Warmers - Wether it's a crisp dawn or a chilly day, our hand warmers will keep you riding in almost any weather. A heated handlebar provides a comfort right where drivers need it most, while heated passenger handgrips ensure your guest is never left out in the cold.
  • 12" Machined Aluminum Rims - Newly styled heavy-duty polished aluminum rims with painted black inlays feature an optimized scrub radius minimizing rider steering effort.
  • Sunset Orange Automotive-Style Paint - This astonishing Sunset Orange finish is a beutiful as its namesake. And like automotive paint, it's very durable, so don't worry about running this machine through mud or woods. It'll come clean in the wash and still maintain that showroom shine.
  • Cruiser Comfort Features - Protective 2-piece fairing with windshield and cup holder keeps driver and passenger warmer. Plus, anti-swirl vent design keeps dust and debris away from driver's face. Heated handlebars and passenger handgrips for added comfort on cool evenings. A plush passenger seat. And a cool, lockable touring case in back, perfect for things like a cooler and a couple of helmets. This machine is designed for a day, or several days of travel.
Specifications
  • Displacement (cc): 695
  • Engine Type: SOHC, 4-Stroke, 4-Valve
  • Bore x Stroke (mm): 102 x 85
  • Cooling System: Liquid w/Fan
  • Transmission: Automatic CVT with EBS, Hi/lo Range & Reverse
  • Drive System: 2/4 WD + Diff lock
  • Overall Width (in./cm): 47.5/120.6
  • Overall Height (in./cm): 50.3/127.8
  • Overall Length (in./cm): 98.6/250.4
  • Wheelbase (in./cm): 58/147.3
  • Suspension Travel- Front (in./cm): 10/25.4
  • Suspension Travel - Rear (in./cm): 10/25.4
  • Ground Clearance (in./cm): 11/27.9
  • Suspension Type - Front: Double A-Arm
  • Suspension Type - Rear: Double A-Arm
  • Front Brakes: Hydraulic Disc
  • Rear Service Brake: Hydraulic Disc
  • Tires - Front: 25x8-12 (5)
  • Tires - Rear: 25x10-12 (5)
  • Max Fuel Capacity (gal/liters): 5.3/20.1
  • Rack Capacity - Front (Ibs./kg): 100/45.4
  • Rack/Box Storage Capacity - Rear (Ibs./kg): 50/22.7
  • Towing Capacity (Ibs./kg): 1050/476.3
  • Alternator Capacity (amps): 25
  • Speedometer: Digital
  • Odometer: Digital
  • Dry Weight (Ibs./kg): 724/328.4
  • Minimum Operator Age: 16
  • Available Colors: Sunset Orange

Specifications

Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 695 cc
Bore x Stroke 102 x 85 mm
Engine Cooling Liquid w/Fan
Alternator 25 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12 (5)
Dimensions/Capacities
Dry Weight 724 lbs.(328.4 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 1050 lbs. (476.3 kg)
Fuel Capacity 5.3 gal. (20.1 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 98.6 x 47.5 x 50.3 in. (250.4 x 120.6 x 127.8 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff lock
Transmission Automatic CVT with EBS, Hi/lo Range & Reverse
General
Speedometer Digital
Odometer Digital
Colors Sunset Orange

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model TRV 700 H1 EFI Cruiser
Style Multi-Rider
MSRP* $12,199.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12 (5)
Frame
Dimensions/Capacities
Dry Weight 724 lbs.(328.4 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 1050 lbs. (476.3 kg)
Fuel Capacity 5.3 gal. (20.1 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 98.6 x 47.5 x 50.3 in. (250.4 x 120.6 x 127.8 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff lock
Final Drive
Transmission Automatic CVT with EBS, Hi/lo Range & Reverse
Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 695 cc
Bore x Stroke 102 x 85 mm
Cylinders
Engine Cooling Liquid w/Fan
Fuel System
Starting System
Alternator 25 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Sunset Orange
Warranty

Current Promotions

There are currently no promotions available for this product.
