New Vehicles » Arctic Cat » 150 Youth
Model Quick Search

$3,999.00
$3,149.00
$850.00

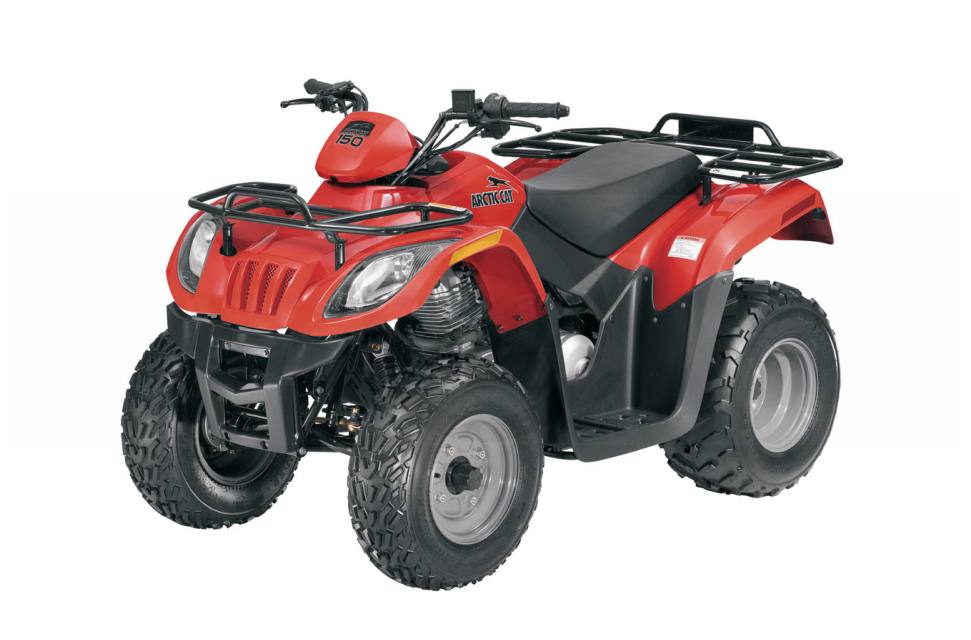

2010 Arctic Cat 150 Youth

3 YR. WARR. & FINANCING AVAILABLE PDI/FRT EXTRA

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

They want to be just like you. So why not give them a machine that matches their size and their passion? Engineered to be the ultimate machine for the teenage set, the 140 2x4 will help them fulfill their wildest dreams. This ATV has an efficient 4-stroke engine that's as powerful as it is durable. Quick, reliable stops are easy with the hydraulic disc brakes. And with features like fully-independent front suspension, preload shocks, full racks and digital instruments, this is the only machine in this age class built with your junior rider in mind.

  • 150 Engine - Want a little get-up-and-go? The 150 sports an efficient 4-stroke, single-cylinder engine with ultraquick throttle response. It's got enough power to help you get the most fun out of your ride.
  • Duramatic™ Automatic Transmission - Durable, efficient automatic CVT is easy to operate, and transfers maximum horsepower and torque to the driveshaft. It also features a Hi/Low shift range and a long-life constant tension belt.
  • Hydraulic Disc Brakes - Single-handed operation on all wheels ensures quick stops. No adjustments are required and brakes are self-cleaning for lower maintenance.
  • Digital Gauge - Digital speedometer readings with integrated warning system includes a clock, dual tripmeter, hour meter, fuel gauge and coolant temperature.
  • Racks - No shimmy and no shake when it comes to these durable steel racks. You've got 25 lb. capacity in front, 50 lbs. in back. That's plenty of storage with amazing strength to match. Perfect for any gear you need to haul.
Specifications
  • Displacement: 149 cc
  • Engine Type: SOHC, 4-stroke, 2-valve
  • Bore & Stroke: 62 x 49.5 mm
  • Cooling System: Air
  • Fuel Capaciy: 2.3 gal / 8.7 L
  • Alternator Capacity: 12.5 amps
  • Speedometer: Digital
  • Odometer: Digital
  • Transmission: Automatic CVT with EBS and Reverse
  • Drive System: 2 WD
  • Front Brakes: Drum
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Single A-Arm
  • Front Travel: 3.5 in / 8.9 cm
  • Rear Suspension: Swing Arm
  • Rear Travel: 3.5 in / 8.9 cm
  • Front Tires (Pressure): 21 x 7-10 (4)
  • Rear Tires (Pressure): 22 x 10-10 (3.5)
  • Overall Length: 69.9 in / 177.5 cm
  • Overall Width: 37.4 in / 95 cm
  • Overall Height: 40.9 in / 103.9 cm
  • Wheelbase: 43.9 in / 111.5 cm
  • Ground Clearance: 7.5 in / 19.1 cm
  • Dry Weight: 386 lbs / 175 kg
  • Front Rack Capacity: 25 lbs / 11.3 kg
  • Rear Rack Capacity: 50 lbs / 22.7 kg
  • Towing Capacity: 300 lbs / 136 kg
  • Color Options: Red

Specifications

Engine
Engine Type SOHC, 4-stroke, 2-valve
Displacement 149 cc
Bore x Stroke 62 x 49.5 mm
Engine Cooling Air
Alternator 12.5 amps
Chassis
Front Suspension Single A-Arm
Front Travel 3.5 in. (8.9 cm)
Front Brake Type Drum
Front Tires 21 x 7-10
Rear Travel 3.5 in. (8.9 cm)
Rear Suspension Swing Arm
Rear Brake Type Hydraulic Disc
Rear Tires 22 x 10-10
Dimensions/Capacities
Dry Weight 386 lbss (175 kg)
Front Rack Capacity 25 lbs. (11.3 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 300 lbs. (136 kg)
Fuel Capacity 2.3 gal (8.7 l)
Ground Clearance 7.5 in. (19.1 cm)
Machine Dimensions (LxWxH) 69.9 x 37.4 x 40.9 in. (177.5 x 95 x 103.9 cm)
Wheelbase 43.9 in. (111.5 cm)
Drive Train
Drive Train 2 WD
Transmission Automatic CVT with EBS and Reverse
General
Speedometer Digital
Odometer Digital
Colors Red

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model 150 Youth
Style Youth
MSRP* $3,999.00
Chassis
Front Suspension Single A-Arm
Front Travel 3.5 in. (8.9 cm)
Front Brake Type Drum
Front Tires 21 x 7-10
Rear Suspension Swing Arm
Rear Travel 3.5 in. (8.9 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 22 x 10-10
Frame
Dimensions/Capacities
Dry Weight 386 lbss (175 kg)
Front Rack Capacity 25 lbs. (11.3 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 300 lbs. (136 kg)
Fuel Capacity 2.3 gal (8.7 l)
Ground Clearance 7.5 in. (19.1 cm)
Machine Dimensions (LxWxH) 69.9 x 37.4 x 40.9 in. (177.5 x 95 x 103.9 cm)
Wheelbase 43.9 in. (111.5 cm)
Drive Train
Drive Train 2 WD
Final Drive
Transmission Automatic CVT with EBS and Reverse
Engine
Engine Type SOHC, 4-stroke, 2-valve
Displacement 149 cc
Bore x Stroke 62 x 49.5 mm
Cylinders
Engine Cooling Air
Fuel System
Starting System
Alternator 12.5 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Red
