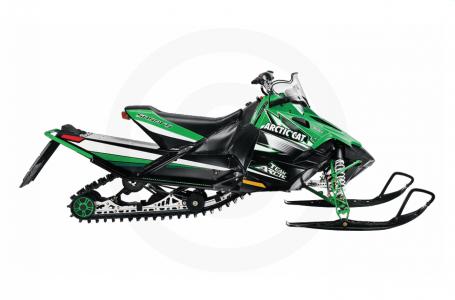

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Ever wanted to emulate your heroes? We're unleashing a lightweight, high-spirited race replica sled that's dominated the racing circuit for the past two seasons. Under the World's Fastest Snowmobile™ cornerstone, the Sno Pro® 500 is ready to race at on affordable price that might surprise you. The 500 2-stroke engine with batteryless EFI pulls out all the stops for dominating cross-country races, snocross tracks or your favorite ditch. AWS™ front suspension is a race-bred feature in concert with the Slide-Action Rear-Suspension™. Plus FOX® Zero Pro shocks have you covered on both ends. The agility of the 128" x 15" x 1.25" Cobra™ track keeps you solid on the trickiest of traits. The Sno Pro 500 is ready for anyone who wants a racing edge to their sled.


500 Laydown Engine - The 500 engine is a 2-stroke, 499 cc liquid twin with batteryless electronic fuel injection. The engine is "laid down" in the chassis to move snowmobile mass toward the ground and effectively lower the center of gravity. BEFI adjusts for temperature and altitude. Count on quick starts, great fuel economy and cleaner emissions.


Sno Pro Race Chassis - This chassis is designed to be strong and take all the punishment the race track dishes out. Built with a combination of 4130 chrome-moly and extruded aluminum, it forms a pyramidal structure that will give you the race ride you desire.


128" x 14" x 1.0 Track - This one is not your typical 15" track. Nope, this one's a 14" x 128" x 1.0". These measurements are shorthand for "FAST."


FOX® Zero Pro IFP Ski Shocks - The Sno Pro® 500 gets the advantage of the new AWS™ VIII double-wishbone A-arms and FOX® Zero Pro IFP shocks.


Slide-Action Rear Suspension™: Straight from the Sno Pro® race sled. Slide-Action Rear Suspension™ incorporates a U—shaped front arm slot that fits over a shaft bolted across the tunnel. This creates a half—inch of "sliding" movement, preventing the front arm from torque locking. Better still, it helps keep the skis planted during acceleration, all but eliminating ski lift when gassing it through the corners.

    Engine
    • Type: 2-stroke
    • Displacement: 499 cc
    • Cooling: Liquid
    • Cylinders: Twin
    • Bore x Stroke: 71 x 63 mm
    • Lubrication: Oil injection
    • Ignition: 3D
    • Carburetion: 38 mm throttle body batteryless EFI
    • Exhaust: Tuned pipe and canister
    • Fuel Capacity: 11 gal.
    Powertrain
    • Drive: Arctic (rpm sensing)
    • Driven clutch: Team driven
    • Brakes: Hydraulic disc
    Suspension
    • Front suspension: AWS™ VIII double-wishbone A-arms with FOX® Zero Pro IFP and sway bar
    • Front travel: 9.5 in.
    • Rear suspension: Slide-action frame with coupling blocks, adjustable torsion springs and FOX® (IFP) shocks, 2? dia. rear shock
    • Rear travel: 13.5 in.
    Dimensions
    • Overall length: 117 in.
    • Overall width: 49.5 in.
    • Ski stance: 43 in.
    • Track width: 15 in.
    • Track length: 128 in.
    • Lug: 1.25 in.
    Color
    • Green
    Standard Features
    • Dual halogen (4-bulb) headlight
    • UHMW plastic saddleless ski material
    • Hand warmer
    • Thumb warmer
    • Mid-height windshield
    • Tether switch
    • Sway bar
    • Digital/analog tachometer
    • Digital/analog speedometer
    • Dual stage trip odometer
    • Electric fuel gauge
    • Low oil light
    • Coolant overheat light
    Optional Features
    • Low windshield
    • Spark plug holder
    • Sport bumper

    Specifications

    Engine
    Engine Type 2-stroke
    Displacement 499 cc
    Bore x Stroke 71 x 63 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 38 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust Tuned pipe and canister
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Team driven
    Suspension
    Front Suspension AWS™ VIII double-wishbone A-arms with FOX® Zero Pro IFP and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and FOX® (IFP) shocks, 2? dia. rear shock
    Rear Travel 13.5 in.
    Ski Stance 43 in.
    Track Dimensions 128" x 15" x 1.25"
    General
    Speedometer Digital/Analog
    Tachometer Digital/Analog
    Odometer Dual stage trip
    Headlight Dual halogen (4 bulb)
    Fuel Capacity 11 gal.
    Color Green
    Options
    Hand & Thumb Warmers Standard

    Compare Models

    		 Print








    Year 2010
    Manufacturer Arctic Cat
    Model Sno Pro 500
    Style Performance
    MSRP* $10,399.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Team driven
    Engine
    Engine Type 2-stroke
    Displacement 499 cc
    Bore x Stroke 71 x 63 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 38 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust Tuned pipe and canister
    Alternator
    General
    Speedometer Digital/Analog
    Tachometer Digital/Analog
    Odometer Dual stage trip
    Headlight Dual halogen (4 bulb)
    Fuel Capacity 11 gal.
    Dry Weight
    Windshield
    Color Green
    Warranty
    Options
    Electric Start
    Hand & Thumb Warmers Standard
    Reverse
    Mirrors
    Suspension
    Front Suspension AWS™ VIII double-wishbone A-arms with FOX® Zero Pro IFP and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and FOX® (IFP) shocks, 2? dia. rear shock
    Rear Travel 13.5 in.
    Ski Type
    Ski Stance 43 in.
    Track Type
    Track Dimensions 128" x 15" x 1.25"
