New Vehicles » Arctic Cat » 550 S Recreation
Model Quick Search

$9,749.00
$8,599.00
$1,150.00

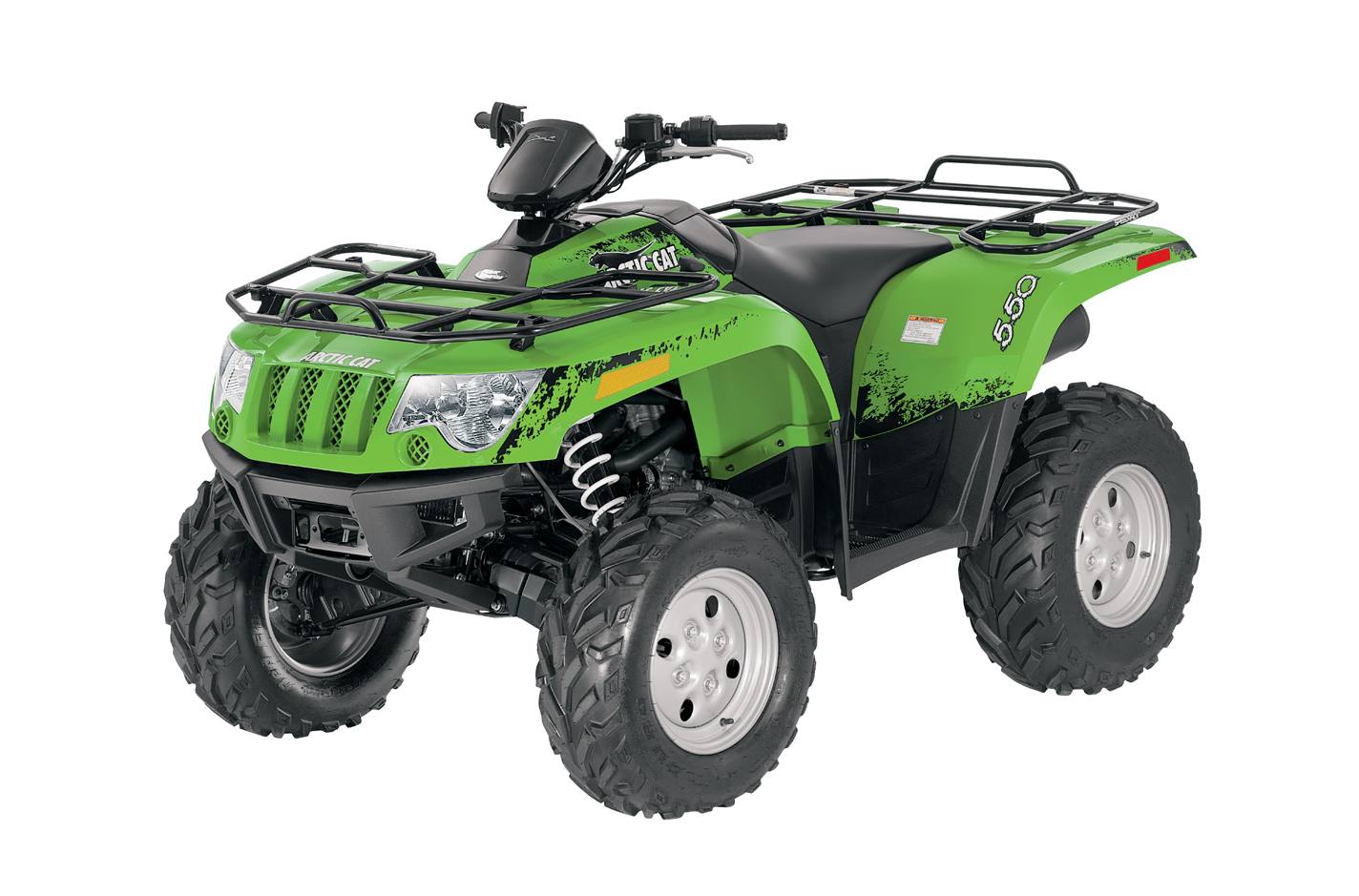

2011 Arctic Cat 550 S Recreation

INCLUDES 2 YEAR WARRANTY OR WINCH PDI/FRT EXTRA

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Lime
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Find your place in the great outdoors with an ATV that's perfectly suited to your trail riding style. The 550 S boasts a winning combination of a 4-stroke, liquid-cooled, 545cc engine with EFI and Duramatic™ automatic transmission, helping you get out there with power and performance. And when there's a nasty trail ahead, its electronic power steering (EPS) system provides a smoother, more confident ride with reduced steering torque and the ultimate power steering assist. Plus, its reliable Ride-In suspension gives you a lower suspension profile with 11" of ground clearance for any terrain that comes your way. And the sporty body styling of the 550 S shows any other riders out there that you're ready for anything.

  • Power Steering
  • Ride-In Suspension
  • 550 H1 EFI Engine
  • Duramatic™ Automatic Transmission
  • Digital Gauge
  • Electric 2WD/4WD and Front Differential Lock
  • SpeedRack System
Engine
  • Displacement: 545 cc
  • Engine Type: SOHC, 4-stroke, 4-valve w/EFI
  • Bore & Stroke: 92 mm x 82 mm
  • Cooling System: Liquid with fan
  • Fuel Capacity: 5.7 gal. (21.6 L)
  • Alternator Capacity: 25.0 amps
  • Speedometer: Digital
  • Odometer: Digital
Powertrain
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
Suspension
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in. (25.4 cm)
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in. (25.4 cm)
  • Front Tires: 25 x 8-12
  • Rear Tires: 25 x 10-12
Dimensions
  • Overall Length: 84.8 in. (215.4 cm)
  • Overall Width: 47.5 in. (120.6 cm)
  • Overall Height: 48 in. (121.9 cm)
  • Wheelbase: 50 in. (127 cm)
  • Ground Clearance: 11 in. (27.9 cm)
  • Dry Weight: 691 lbs. (313.4 kg)
Towing/Hauling
  • Front Rack Capacity: 100 lbs. (45.4 kg)
  • Rear Rack Capacity: 200 lbs. (90.8 kg)
  • Towing Capacity: 1,050 lbs. (476.3 kg)
Special Features
  • Special Features: Power Steering
Color
  • Color: Lime

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve w/EFI
Displacement 545 cc
Bore x Stroke 92 mm x 82 mm
Engine Cooling Liquid with fan
Fuel System EFI
Alternator 25.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12
Rear Travel 10 in. (25.4 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12
Dimensions/Capacities
Dry Weight 691 lbs. (313.4 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal. (21.6 L)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 84.8 in. x 47.5 in. x 48 in. (215.4 cm x 120.6 cm x 121.9 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Digital
Odometer Digital
Colors Lime

Compare Models

 Print








Year 2011
Manufacturer Arctic Cat
Model 550 S Recreation
Style Utility
MSRP* $9,749.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12
Frame
Dimensions/Capacities
Dry Weight 691 lbs. (313.4 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal. (21.6 L)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 84.8 in. x 47.5 in. x 48 in. (215.4 cm x 120.6 cm x 121.9 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type SOHC, 4-stroke, 4-valve w/EFI
Displacement 545 cc
Bore x Stroke 92 mm x 82 mm
Cylinders
Engine Cooling Liquid with fan
Fuel System EFI
Starting System
Alternator 25.0 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Lime
Warranty

Current Promotions

There are currently no promotions available for this product.
