New Vehicles » Arctic Cat » 550 Recreation Camo
Model Quick Search

$9,599.00
$9,099.00
$500.00

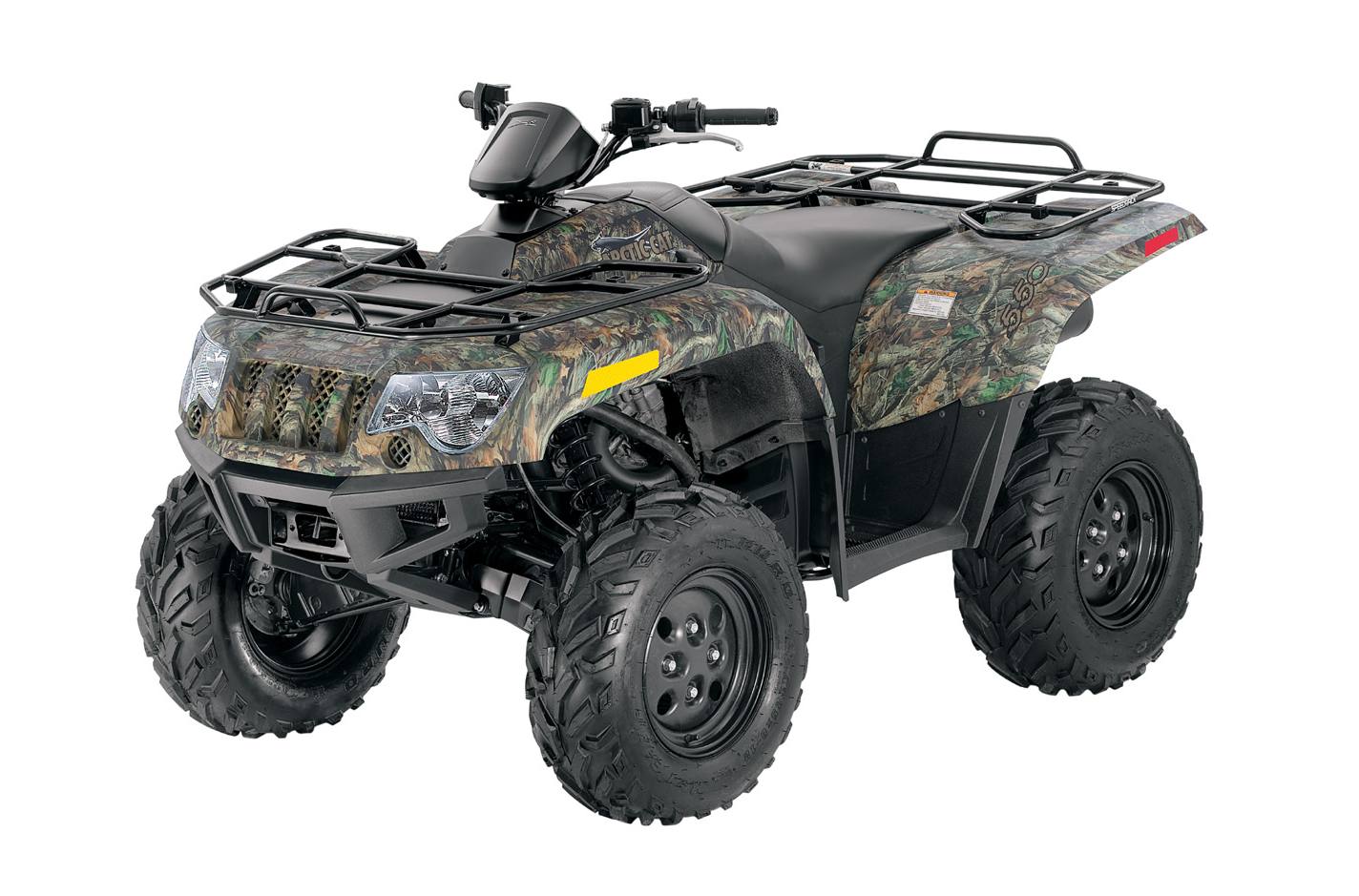

2011 Arctic Cat 550 Recreation Camo

INCLUDES 2 YEAR WARRANTY OR WINCH PDI/FRT EXTRA

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Advantage Timber Camo
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

This ATV tranforms any outdoor terrain into your own personal "Adventureland." The 550 harnesses a 4-stroke, 545cc engine with EFI that's liquid-cooled and efficient. There's also an electric switch at your fingertips to easily shift between 2-wheel and 4-wheel drive. Plus, a front differential lock enables you to customize your ride depending on the trail you choose. We're talking big machine capabilities. From the plastic skid plate for undercarriage protection to the hardworking Ride-In suspension that maintains 11" of ground clearance, this machine turns every trail into a full-throttle thrill ride.

  • Electric 2WD/4WD and Front Differential Lock
  • Digital Gauge
  • 550 EFI Engine
  • SpeedRack System
  • Ride-In Suspension
  • Duramatic™ Automatic Transmission
  • Rear 2" Receiver
Engine
  • Displacement: 545 cc
  • Engine Type: SOHC, 4-stroke, 4-valve w/EFI
  • Bore & Stroke: 92 mm x 82 mm
  • Cooling System: Liquid with fan
  • Fuel Capacity: 5.7 gal. (21.6 l)
  • Alternator Capacity: 25.0 amps
  • Speedometer: Digital
  • Odometer: Digital
Powertrain
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
Suspension
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in. (25.4 cm)
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in. (25.4 cm)
  • Front Tires: 25 x 8-12
  • Rear Tires: 25 x 10-12
Dimensions
  • Overall Length: 84.8 in. (215.4 cm)
  • Overall Width: 47.5 in. (120.6 cm)
  • Overall Height: 48 in. (121.9 cm)
  • Wheelbase: 50 in. (127 cm)
  • Ground Clearance: 11 in. (27.9 cm)
  • Dry Weight: 676 lbs. (306.6 kg)
Towing/Hauling
  • Front Rack Capacity: 100 lbs. (45.4 kg)
  • Rear Rack Capacity: 200 lbs. (90.8 kg)
  • Towing Capacity: : 1,050 lbs. (476.3 kg)
Color
  • Color: Advantage Timber Camo

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve w/EFI
Displacement 545 cc
Bore x Stroke 92 mm x 82 mm
Engine Cooling Liquid with fan
Fuel System EFI
Alternator 25.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12
Dimensions/Capacities
Dry Weight 676 lbs. (306.6 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal. (21.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 84.8 in. x 47.5 in. x 48 in. (215.4 cm x 120.6 cm x 121.9 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Digital
Odometer Digital
Colors Advantage Timber Camo

Compare Models

 Print








Year 2011
Manufacturer Arctic Cat
Model 550 Recreation Camo
Style Utility
MSRP* $9,599.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12
Frame
Dimensions/Capacities
Dry Weight 676 lbs. (306.6 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal. (21.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 84.8 in. x 47.5 in. x 48 in. (215.4 cm x 120.6 cm x 121.9 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type SOHC, 4-stroke, 4-valve w/EFI
Displacement 545 cc
Bore x Stroke 92 mm x 82 mm
Cylinders
Engine Cooling Liquid with fan
Fuel System EFI
Starting System
Alternator 25.0 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Advantage Timber Camo
Warranty

Current Promotions

There are currently no promotions available for this product.
