New Vehicles » Arctic Cat » TRV 700 S GT
Model Quick Search

$11,699.00
$9,288.00
$2,411.00

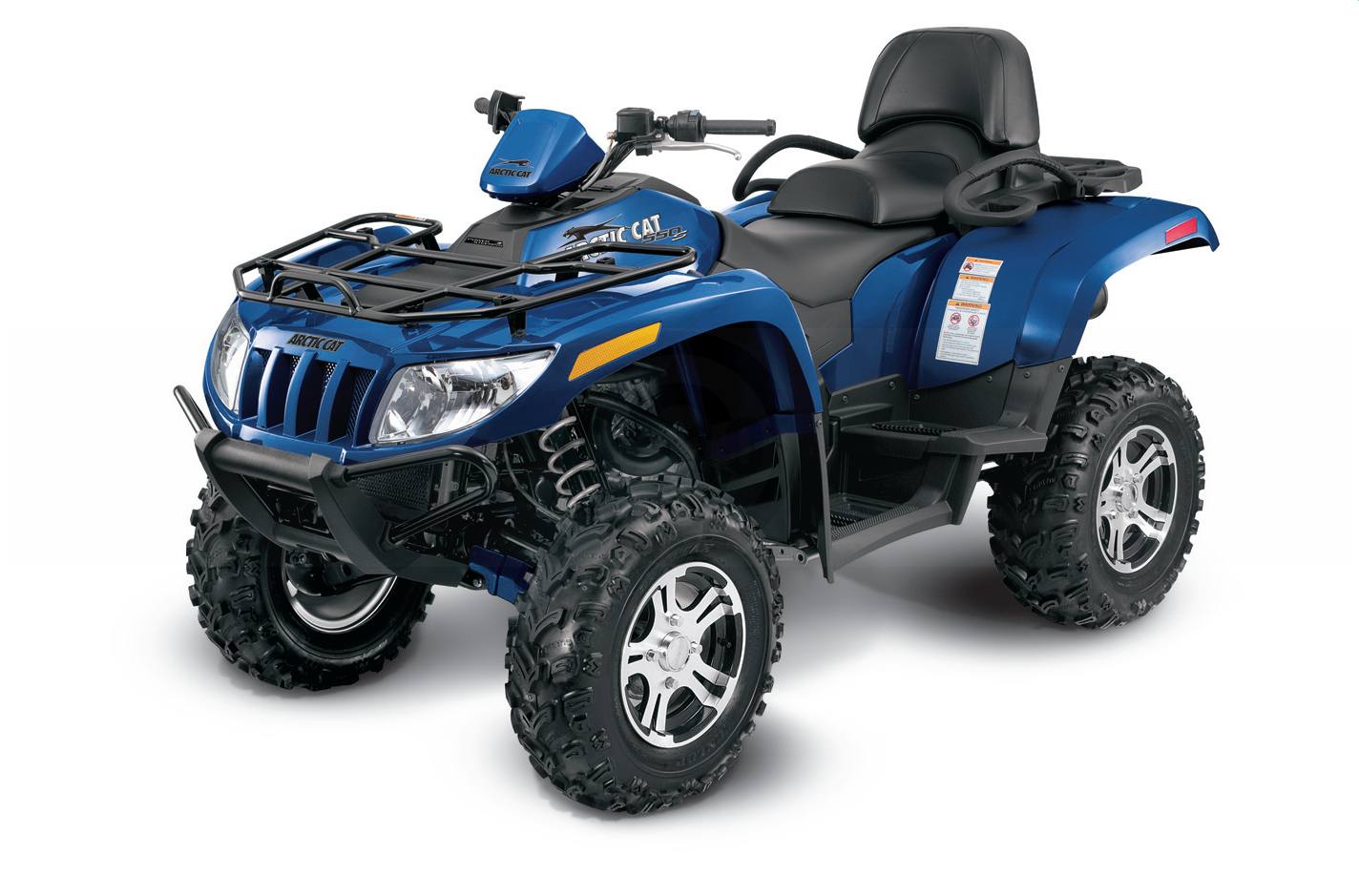

2010 Arctic Cat TRV 700 S GT

3 YR. WARR. & FINANCING AVAILABLE, PDI/FRT EXTRA

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

This is the ATV that speaks volumes when the open trail is the subject at hand. The TRV® 700 S GT starts the ball rolling with a 695cc 4-stroke engine that provides astounding horsepower, while its on-the-fly 2WS/4WS and new electronic power steering system improve maneuverability when the roughest path is the one most travelled. And it couldn't be considered the ultimate off-road machine unless it included the extremely durable Duro tires with treads to handle any terrain. Also, the TRV 700 S GT comes standard with a sleek, Tungsten Metallic paint job and 12" aluminum rims, both of which will make you the envy of fellow trailblazers.

  • Power Steering – This technology means business, even at idle. An electronic power steering (EPS) system designed specifically for Arctic Cat, it reduces torque necessary to steer your ATV while changing directions or navigating rough terrain. Its electronic unit provides assistance to the steering column trough a sealed, brushless electric motor, which measures steering input force verses tire resistance and vehicle speed. Four different inputs (MPH, RPH, handlebars and wheels) and 36 foot-pounds of torque – 3x the competition.
  • 700 H1 EFI Engine – It’s go-time with a race-bred 695cc, liquid-cooled EFI engine featuring a single overhead cam and a single overhead cam and a single cylinder. The “H” stands for its hemispherical-shaped heads, delivering more efficient combustion resulting in better performance. Electronic fuel injection ensures easy starts and consistent performance in various climates or altitudes. Push the throttle with this one, it answers big-time.
  • Duramatic™ Automatic Transmission – Durable, Efficient automatic CVT is easy to operate, and transfers maximum horsepower and torque to the driveshaft. It also features a Hi/Low shift range, spike load dampener and a long-life, constant tension belt.
  • Deluxe Digital/Analog Gauge – Within a glance, you’ll be able to catch a glimpse of up to 14 critical information indicators. Keep a close check on such indicators as your speedometer, clock/hour meter, fuel level, mode button, odometer/tripmeter, gear position, differential lock, high beam, battery condition, temperature and oil pressure.
  • 12” Machined Aluminum Rims – Our heavy-duty polished aluminum rims with painted black inlays feature an optimized scrub radius minimizing riding steering effort.
  • Electric 2WD/4WD and Front Differential Lock – When the going g ets tough, shift from 2-wheel drive to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
  • Tungsten Metallic Paint - No-nonsense. It defines your riding style and lets other riders know it from the get-go. Now it's more visible than ever with a Tungsten Metallic paint job. Light, gunmetal gray to show the world you mean business on any trail.
Specifications
  • Displacement: 695 cc
  • Engine Type: SOHC, 4-stroke, 4-valve
  • Bore & Stroke: 102 x 85 mm
  • Cooling System: Liquid with fan
  • Fuel Capaciy: 5.3 gal / 20.1 L
  • Alternator Capacity: 25.0 amps
  • Speedometer: Digital
  • Odometer: Digital
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in / 25.4 cm
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in / 25.4 cm
  • Front Tires (Pressure): 25 x 8-12 (5)
  • Rear Tires (Pressure): 25 x 10-12 (5)
  • Color: Tungsten Metallic
  • Overall Length: 98.6 in / 250.4 cm
  • Overall Width: 47.5 in / 120.6 cm
  • Overall Height: 50.3 in / 127.8 cm
  • Wheelbase: 58 in / 147.3 cm
  • Ground Clearance: 11 in / 27.9 cm
  • Dry Weight: 724 lbs / 328.4 kg
  • Front Rack Capacity: 100 lbs / 45.4 kg
  • Rear Rack Capacity: 50 lbs / 22.7 kg
  • Towing Capacity: 1,050 lbs / 476.3 kg

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 695 cc
Bore x Stroke 102 x 85 mm
Engine Cooling Liquid with fan
Alternator 25.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12 (5)
Rear Travel 10 in. (25.4 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12 (5)
Dimensions/Capacities
Dry Weight 724 lbs. (328.4 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.3 gal (20.1 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) Overall Length: 98.6 in. (250.4 cm); Overall Width: 47.5 in. (120.6 cm); Overall Height: 50.3 in. (127.8 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Digital
Odometer Digital
Colors Tungsten Metallic

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model TRV 700 S GT
Style Multi-Rider
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12 (5)
Frame
Dimensions/Capacities
Dry Weight 724 lbs. (328.4 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.3 gal (20.1 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) Overall Length: 98.6 in. (250.4 cm); Overall Width: 47.5 in. (120.6 cm); Overall Height: 50.3 in. (127.8 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 695 cc
Bore x Stroke 102 x 85 mm
Cylinders
Engine Cooling Liquid with fan
Fuel System
Starting System
Alternator 25.0 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Tungsten Metallic
Warranty

Current Promotions

There are currently no promotions available for this product.
