2010 Arctic Cat TRV 550 S GT

3 YR. WARR. & FINANCING AVAILABLE, PDI/FRT EXTRA

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

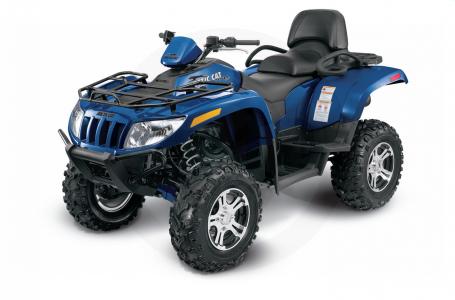

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The journey there should always be as memorable as your destination. That's what we had in mind when we designed the TRV® 550 S GT. This 2-up trail riding wonder boasts a liquid-cooled, 545cc 4-stroke engine with the horsepower you'll need to stay ahead of the pack. Its fully independent suspension and front differential lock keep the journey smooth and steady while a new electronic power steering system provides 36 foot-pounds of torque to help you change direction and stay on the path. The TRV 550 S GT also comes standard with a bold, Viper Blue paint job and 12" aluminum rims to let anyone else on the trail know that your voyage is just as important as your end point.

  • Power Steering – This technology means business, even at idle. An electronic power steering (EPS) system designed specifically for Arctic Cat, it reduces torque necessary to steer your ATV while changing directions or navigating rough terrain. Its electronic unit provides assistance to the steering column trough a sealed, brushless electric motor, which measures steering input force verses tire resistance and vehicle speed. Four different inputs (MPH, RPH, handlebars and wheels) and 36 foot-pounds of torque – 3x the competition.
  • 550 H1 EFI Engine – This 545cc, liquid-cooled EFI features a single overhead cam and a single cylinder. The “H” stands for its hemispherical-shaped heads, delivering more efficient combustion resulting in better performance. Electronic fuel injection ensures easy starts and consistent performance in various climates or altitudes. This 4-stroke is efficient, powerful and ready to go.
  • Duramatic™ Automatic Transmission – Durable, Efficient automatic CVT is easy to operate, and transfers maximum horsepower and torque to the driveshaft. It also features a Hi/Low shift range, spike load dampener and a long-life, constant tension belt.
  • Deluxe Digital/Analog Gauge – Within a glance, you’ll be able to catch a glimpse of up to 14 critical information indicators. Keep a close check on such indicators as your speedometer, clock/hour meter, fuel level, mode button, odometer/tripmeter, gear position, differential lock, high beam, battery condition, temperature and oil pressure.
  • 12” Machined Aluminum Rims – Our heavy-duty polished aluminum rims with painted black inlays feature an optimized scrub radius minimizing riding steering effort.
  • Electric 2WD/4WD and Front Differential Lock – When the going g ets tough, shift from 2-wheel drive to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
  • Viper Blue Paint – Turn heads on the open trail with a paint job that cuts through the fall colors like a hot knife through butter. When showing off is high on your list of priorities, Viper Blue is a bold, cool color that adds a hint of sophistication.
Specifications
  • Displacement: 545 cc
  • Engine Type: SOHC, 4-stroke, 4-valve
  • Bore & Stroke: 92 x 82 mm
  • Cooling System: Liquid with fan
  • Fuel Capaciy: 5.3 gal / 20.1 L
  • Alternator Capacity: 25.0 amps
  • Speedometer: Digital
  • Odometer: Digital
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in / 25.4 cm
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in / 25.4 cm
  • Front Tires (Pressure): 25 x 8-12 (5)
  • Rear Tires (Pressure): 25 x 10-12 (5)
  • Color: Viper Blue
  • Overall Length: 98.6 in / 250.4 cm
  • Overall Width: 47.5 in / 120.6 cm
  • Overall Height: 50.3 in / 127.8 cm
  • Wheelbase: 58 in / 147.3 cm
  • Ground Clearance: 11 in / 27.9 cm
  • Dry Weight: 719 lbs / 326.2 kg
  • Front Rack Capacity: 100 lbs / 45.4 kg
  • Rear Rack Capacity: 50 lbs / 22.7 kg
  • Towing Capacity: 1,050 lbs / 476.3 kg

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 545 cc
Bore x Stroke 92 x 82 mm
Engine Cooling Liquid with fan
Alternator 25.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12 (5)
Dimensions/Capacities
Dry Weight 719 lbs. (326.2 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.3 gal (20.1 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) Overall Length: 98.6 in. (250.4 cm); Overall Width: 47.5 in. (120.6 cm); Overall Height: 50.3 in. (127.8 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Digital
Odometer Digital
Colors Viper Blue

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model TRV 550 S GT
Style Multi-Rider
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12 (5)
Frame
Dimensions/Capacities
Dry Weight 719 lbs. (326.2 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 50 lbs. (22.7 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.3 gal (20.1 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) Overall Length: 98.6 in. (250.4 cm); Overall Width: 47.5 in. (120.6 cm); Overall Height: 50.3 in. (127.8 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 545 cc
Bore x Stroke 92 x 82 mm
Cylinders
Engine Cooling Liquid with fan
Fuel System
Starting System
Alternator 25.0 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Viper Blue
Warranty
