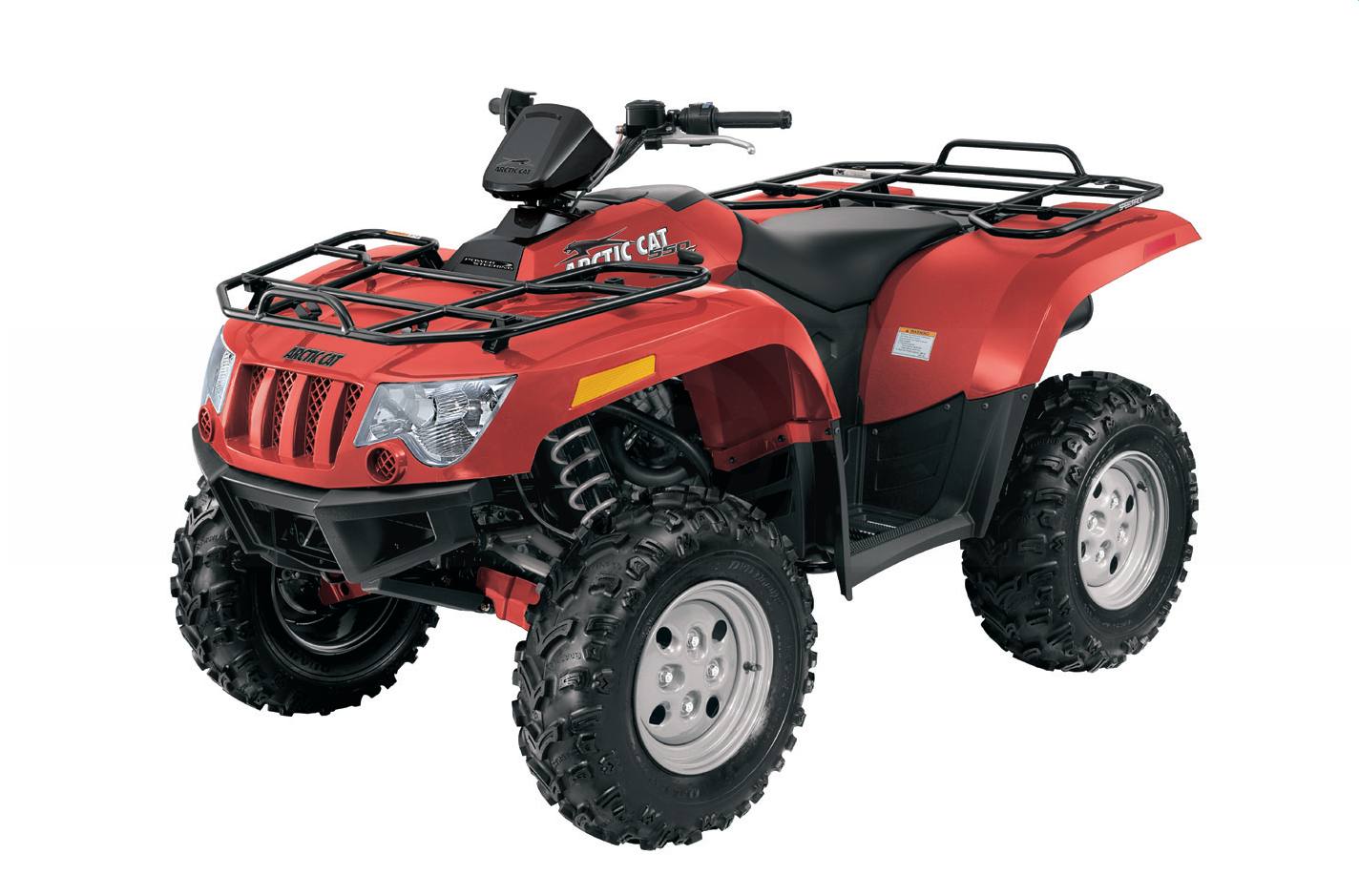

2010 Arctic Cat 550 S

3 YR. WARR. & FINANCING AVAILABLE, PDI/FRT EXTRA

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Find your place in the great outdoors with an ATV that's perfectly suited to your trail riding style. The 550 S boasts a winning combination of 40stroke, liquid-cooled H1 EFI 545cc engine and Duramatic™ automatic transmission, helping you get out there with the power and performance you've come to expect from Arctic Cat®. And when there's a nasty trail ahead, change direction on the fly with a new electronic power steering system. Plus, its reliable Ride-In suspension gives you a lower suspension profile with 11" of ground clearance for any terrain that comes your way. And the sporty body styling of the 500 S shows any other riders out there that you're ready for anything.

  • Power Steering - This technology means business, even at idle. An electronic power steering (EPS) system designed specifically for Arctic Cat, it reduces torque necessary to steer your ATV while changing directions or navigating rough terrain. Its electronic unit provides assistance to the steering column trough a sealed, brushless electric motor, which measures steering input force verses tire resistance and vehicle speed. Four different inputs (MPH, RPH, handlebars and wheels) and 36 foot-pounds of torque - 3x the competition.
  • Ride-In Suspension - Fully independent, race-inspired suspension features a lower suspension profile and a lower seat design, resulting in a lower center of gravity yet maintaining 11" of ground clearance. That means more confidence hammering through tight corners on the trail, as well as clearing big, nasty obstacles off the trail.
  • 550 H1 EFI Engine - This 545cc, liquid-cooled EFI features a single overhead cam and a single cylinder. The "H" stands for its hemispherical-shaped heads, delivering more efficient combustion resulting in better performance. Electronic fuel injection ensures easy starts and consistent performance in various climates or altitudes. This 4-stroke is efficient, powerful and ready to go.
  • Duramatic™ Automatic Transmission - Durable, Efficient automatic CVT is easy to operate, and transfers maximum horsepower and torque to the driveshaft. It also features a Hi/Low shift range, spike load dampener and a long-life, constant tension belt.
  • Digital Gauge - Digital speedometer readings with integrated warning system includes a clock, dual tripmeter, hour meter and fuel gauge. This helpful gauge also has a gear indicator and a 4WD/differential lock indicator.
  • Electric 2WD/4WD and Front Differential Lock - When the going g ets tough, shift from 2-wheel drive to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
Specifications
  • Displacement: 545 cc
  • Engine Type: SOHC, 4-stroke, 4-valve
  • Bore & Stroke: 92 x 82 mm
  • Cooling System: Liquid with fan
  • Fuel Capaciy: 5.7 gal / 21.6 L
  • Alternator Capacity: 25.0 amps
  • Speedometer: Digital
  • Odometer: Digital
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in / 25.4 cm
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in / 25.4 cm
  • Front Tires (Pressure): 25 x 8-12 (5)
  • Rear Tires (Pressure): 25 x 10-12 (5)
  • Color: Red
  • Overall Length: 84.8 in / 215.4 cm
  • Overall Width: 47.5 in / 120.6 cm
  • Overall Height: 48 in / 121.9 cm
  • Wheelbase: 50 in / 127 cm
  • Ground Clearance: 11 in / 27.9 cm
  • Dry Weight: 692 lbs / 313.9 kg
  • Front Rack Capacity: 100 lbs / 45.4 kg
  • Rear Rack Capacity: 200 lbs / 90.8 kg
  • Towing Capacity: 1,050 lbs / 476.3 kg
  • Front & Rear Bumpers: Standard

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 545 cc
Bore x Stroke 92 x 82 mm
Engine Cooling Liquid with fan
Alternator 25.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12 (5)
Rear Travel 10 in. (25.4 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12 (5)
Dimensions/Capacities
Dry Weight 692 lbs. (313.9 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal (21.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) Overall Length: 84.8 in. (215.4 cm); Overall Width: 47.5 in. (120.6 cm); Overall Height: 48 in. (121.9 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Digital
Odometer Digital
Colors Red

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model 550 S
Style Utility
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25 x 8-12 (5)
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25 x 10-12 (5)
Frame
Dimensions/Capacities
Dry Weight 692 lbs. (313.9 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal (21.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) Overall Length: 84.8 in. (215.4 cm); Overall Width: 47.5 in. (120.6 cm); Overall Height: 48 in. (121.9 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 545 cc
Bore x Stroke 92 x 82 mm
Cylinders
Engine Cooling Liquid with fan
Fuel System
Starting System
Alternator 25.0 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Red
Warranty
